Minijet 4 Position Billet Machined Vertical Switch Panel
CAD $ 195.00
Our billet CNC milled aluminum switch panels and marine grade switches are the best way to organize your boat’s electrical functions!

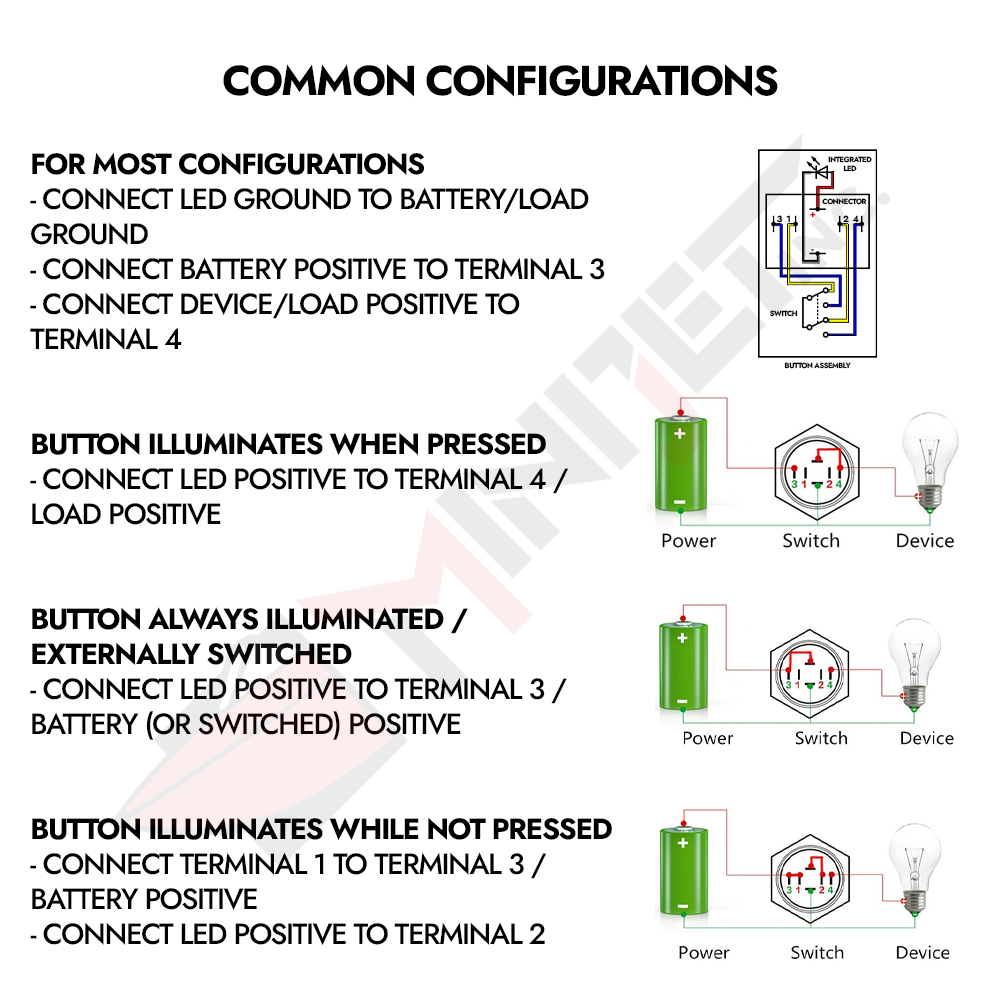

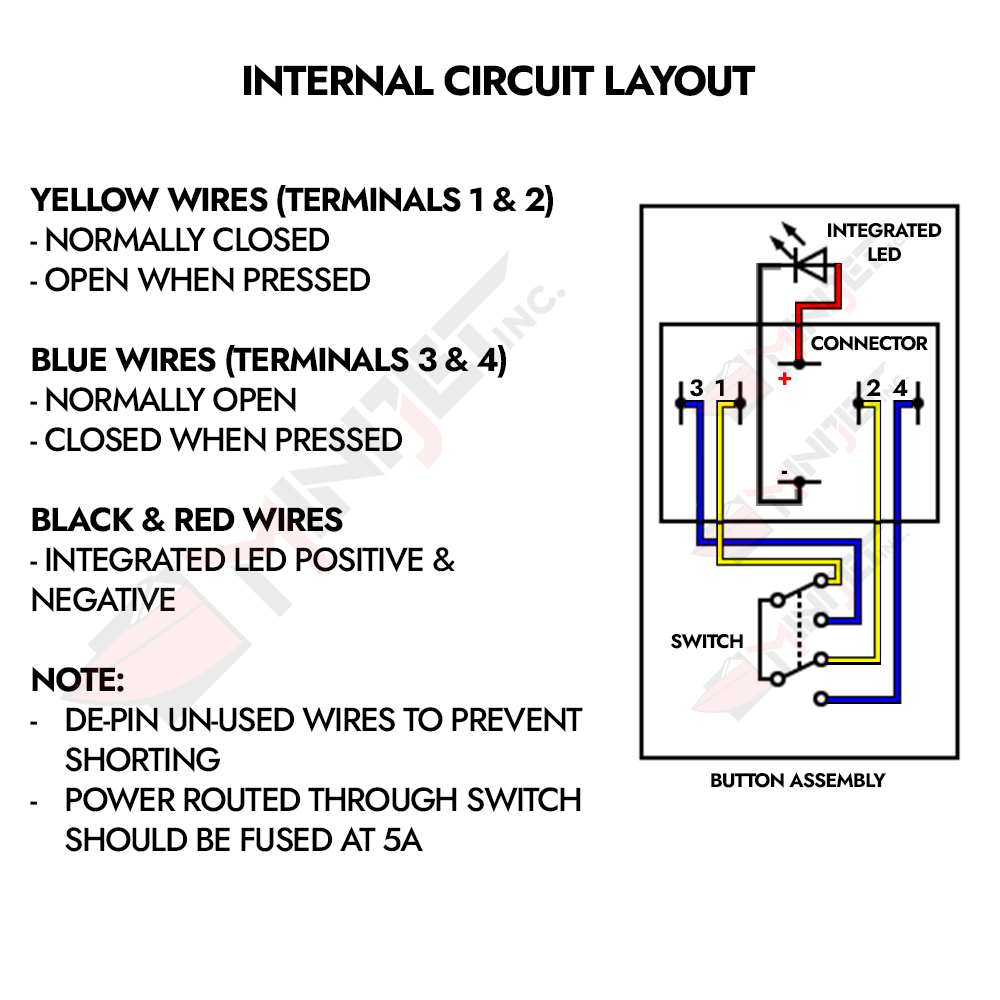

For more information about the switches included in the switch panel HERE
Switch Type
Description
Our in-house designed Minijet billet switch panels are made from aerospace-grade aluminum, precision CNC milled, anodized black, and laser engraved entirely here in Canada!
These switch panels are designed to work with either our momentary or latching illuminated and waterproof switches, and are perfect for controlling start/stop, nav lights, bilge pumps, blowers and more!
Dimensions:
Overall W x H: 4 x 6 inch
Mounting Hole W x H: 3.5 x 5.5 inch
Package Contains:
QTY 1 – 4 Position switch panel
QTY 4 – Waterproof switches (of chosen variant)
QTY 4 – Electrical pigtails for switches
QTY 1 – Stainless steel mounting hardware kit
QTY 1 – Label sheet
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 25 × 11 × 6 cm |
| Switchplate Switch Ratio | 0 Momentary, 4 Latching, 1 Momentary, 3 Latching, 2 Momentary, 2 Latching, 3 Momentary, 1 Latching, 4 Momentary, 0 Latching |
